This is the Datamatik SCADA online store. Datamatik acts as a distributor and project integrator for Motorola Radio and SCADA products.

The company specializes in Remote Control Operations, Supervisory Data transfer, Mototrbo Tetra digital telemetry transfer.

Alarm Dispatcher for Radios

Buy

Alarm Dispatcher for Radios

Alarm Dispatcher for Radios DMR, Tetra
Alarm Dispatcher for Radios DMR, Tetra

Alarm Dispatcher for Radios

from 40.00

Aggregate alarms from various sources and automatically dispatch those alarms onto the radio subscribers. The 'Alarm Dispatcher for radios' consolidates the alarm list from various sources (PLCs, RTUs, Cloud-Based IIoTT servers, OPCUA, ...) and dispatches those alarms to radio talk groups via data messages.

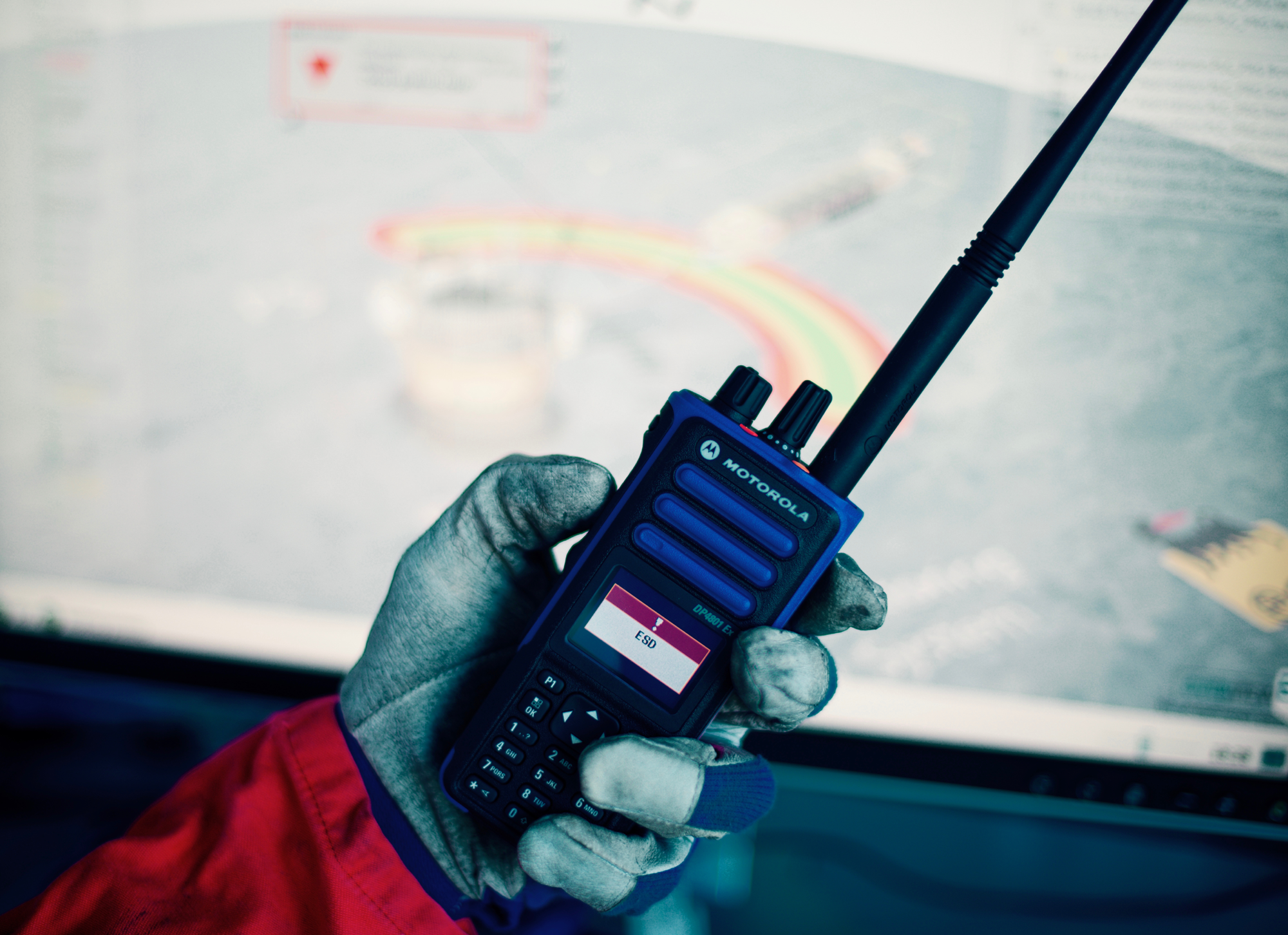

The alarm message is displayed onto the portable radio LCD screen and changes the colour of the LED according to the alarm severity. Alarms can be acknowledged by the operators and their acknowledgement forwarded to the main control room.

License:
Quantity:
Add To Cart

Alarm Dispatcher for Radios is compatible with DMR & Tetra


The alarm server forwards the alarms via text messages (SDM, SDS) to the radio subscriber. This mechanism is compatible with both DMR and Tetra provided that the radios are configured with the appropriate header compression.


Alarms can be configured to be affected to GroupCalls and automatically dispatch to a single operator or group. The configuration is accessible from a web-panel or via the OPC Server configuration panel.

Radio HMI Acknowledge.png

Alarm Acknowledgment

Active alarms should be followed by operators to maintain nominal operations. The alarm acknowledgment function is embeded into the portable radio. Scroll through the active alarm-list and acknowledge an alarm. The OperatorID who has acknowledged the alarm is forwarded to the OPCAlarm Server and shared with the control room.

Streaming alarms

The full alarm-list is streamed to the portable radios. Alarm Dispatcher does not only sends the latest alarm triggered, it allows for scrolling the full active alarm list directly from the radio. This feature is interesting in the case of multiple alarms. It distinguishes ACTIVE alarms from INACTIVE alarms which once were in an active state but no-longer require the operators assistance.

Alarm Severities

The Alarm Severity levels are represented on the radio by use of a colour code affecting both the Radio LED and the Alarm Popups on the radio LCD display. According to OPC, Alarm Severity levels are contained between 1-999. The severity mapping table is configurable to distinguish critical safety alarms from warnings and simple events such a coffee break!



Set-up costs

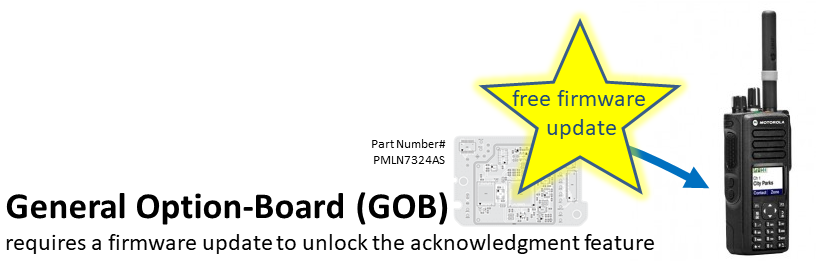

As part of our customer loyalty programme, Datamatik would like to promote its AlarmDispatch feature by providing a free firmware upgrade of the radio subscribers. If your Motorola radio was purchased via our Datamatik's distribution network, the AlarmDispatchforRadio firmware upgrade is for free. Please get in contact with your sales channel to learn more about the remaining cost related to the AlarmDispatch OPCAlarmClient software license.

For Motorola Radios bought outside the Datamatik distribution network, a 45 euros (excluded VAT.) license per subscriber is required to unlock the alarm acknowledgment feature.

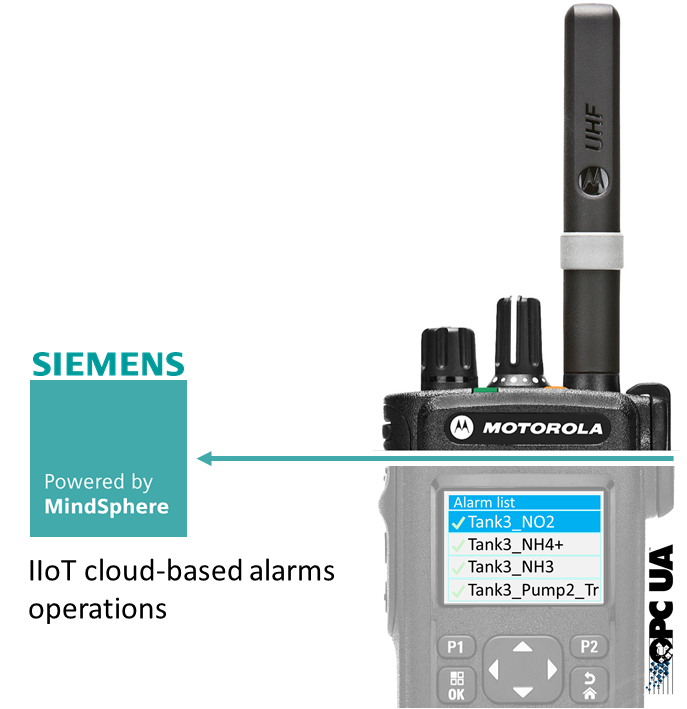

IIoT Cloud-based operations

Are you using Mindsphere @Siemens to digitalize your factory? Alarm Dispatch is Mindsphere ready using the OPCUA drivers.



Tell us more about your configuration?

Infrastructure (Motorola Solutions)
Are you using a motorola infrastructure?
Infrastructure
Do you want to mix DMR radios from different branks? For which infrastructure? (leave blank when irrelevant).
Alarm Sources
Where do you retrieve your alarms from?
Radio types
What type of radios are you using?
Radio fleet size
Alarm list size
How many alarms would you like to transfer to your radio fleet?
Alarm Dispatcher configuration
How would you like to configure your alarm dispatch configuration file?
Alarm acknowledgment
Would you like to acknowledge your alarms from the portable radios?
