CPS configuration (field radios connected to a water sensor)

This user guide is dedicated to the radio configuration in the field, in other words, the radios which are connected to the water sensor. The CPS configuration should cover the following:

  • activation of the GOB card for the dedicated alarm chanels

  • forwarding of the bluetooth accessory IP traffic to the GOB (only required when using a bluetooth sensor)

  • network configuration for UDP traffic

  • emergency alarm with voice call

  • GNSS activation to share the location

  • radio alias configuration (or radio ID)

  • text to speech enable (for voice radio annoucements)

  • alarm gateway configuration (for when use with a dispatch control room)

  • accessory port configuration (for when using the wired accessory water sensor)

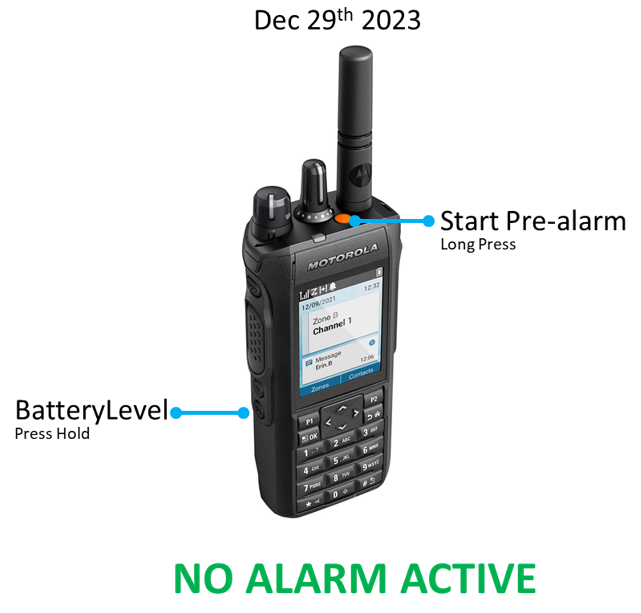

Now let’s discuss the button mapping:

This is the radio receiving the emergency alarm.

To obtain the above button mapping, your CPS configuration should be as follow (below).

Configure the control buttons



The sensor bluetooth data routing should be addressed to the option board (below):

Activate the Option Board on that network

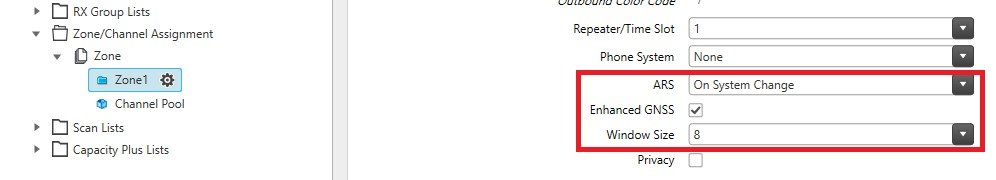

Activating ARS with Enhanced GNSS

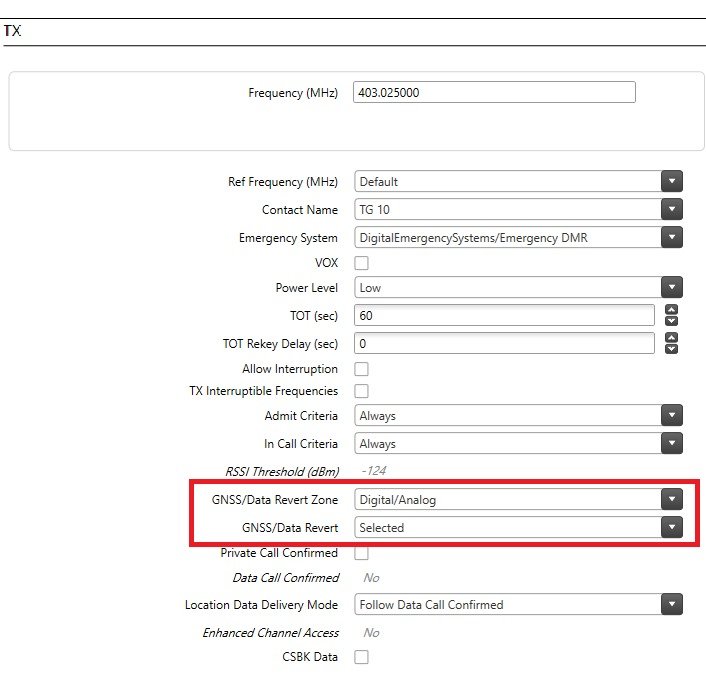

GNSS Data revert selected

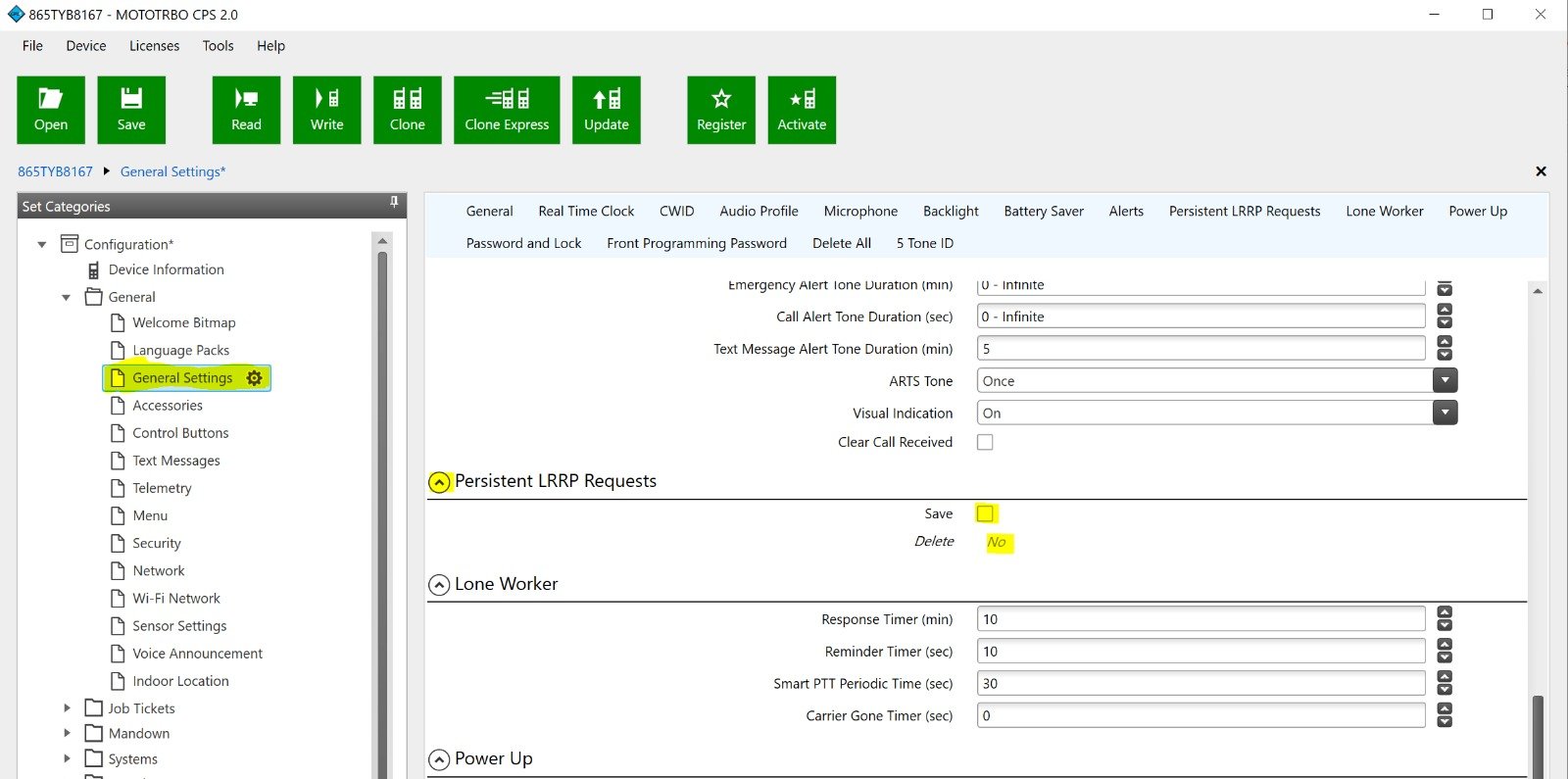

No persisten LRRP Requests

Create digital contact “self”

Create a digital contact called Alarm Gateway containing the MNIS ID port inside the contact callID.

Configure a telemetry cable type accessory with GPIO configuration.

Telemetry VIO3 sends status via self call

Text to speech voice pack configuration
