ACE1000 RTU

The versatile and powerful ACE1000 will deliver the timely communications you need, without having to completely redesign your current system. In a new, compact package, the ACE1000 is the Remote Terminal Unit (RTU) that will facilitate higher reliability and interoperability at a lower cost. Its powerful processor combined with FLASH and RAM memory allows this RTU to be used in the most demanding SCADA environments. Easy to install and use with a web-based easy-programming tool, the ACE1000 Remote Terminal Unit (RTU) is great for starting a new SCADA system or adding to an existing one.

Features

Compact and Rugged Design
Ready for the field RTU in a more compact package

Motorola Radio Support
Supports all Motorola Radio systems (Nodnett, Tetra, MOTOTRBO, Astro)

Easy-Programming Tool (via WEB Browser)
Easy-to-use programming tool for new SCADA users or quick installation

RTC Back-up Battery
Back-up battery to ensure system reliability (at least 20 days @ 25 º C)

256 MB of FLASH Memory and 256 MB of RAM Memory
Large memory capability for storing and backing-up information

IECEx/ ATEX - EXnA IIC T4 (Cat 3/Zone 2)
Compliant with ATEX regulations (without radio, in ATEX approved enclosure)

9-30 VDC Input Voltage Range
Powerful processing for demanding SCADA environments

Sleep/Low-power Mode
Power-saving option for when environment is not as demanding

3rd Party Modem Support
Cellular modem, leased line modem, data radio, and/or broadband radio support, fiber.

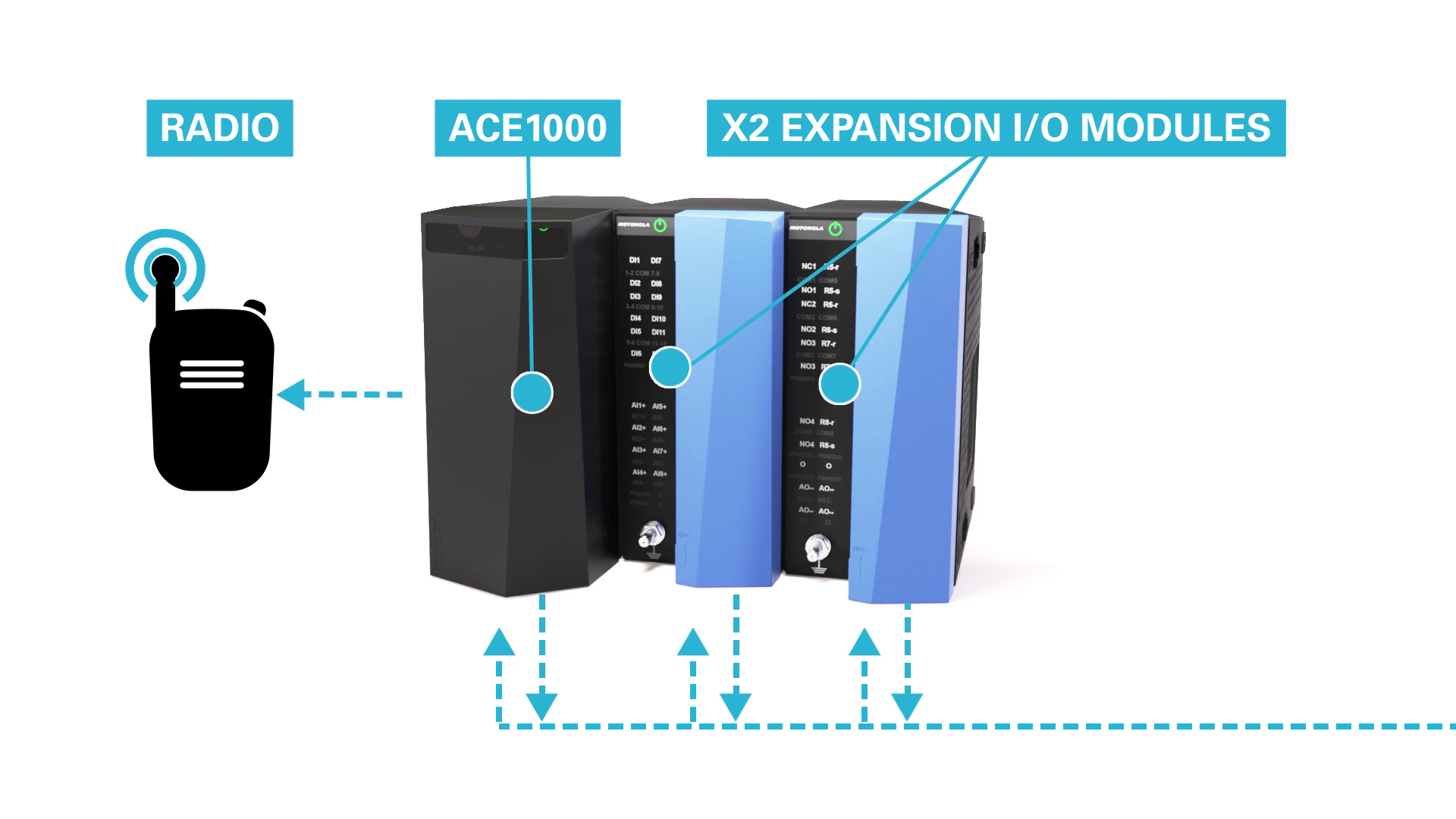

SCADA  integration

From a practical point of view, the SCADA architecture is never trivial. Motorola Remote Terminal Units are designed to fit in a complex architecture and interact with existing PLCs, SQL data servers & actuators.

From a practical point of view, the SCADA architecture is never trivial. Motorola Remote Terminal Units are designed to fit in a complex architecture and interact with existing PLCs, SQL data servers & actuators.



Video tutorials

Programming Overview for ACE1000 Codesys IEC61131 3 by Dorit Kliger (28 min)



ACE1000 PROGRAMMING

Software prequisites:

The ACE1000 makes use of CodeSys developping platform to code the IEC logic.

  • Download & Install the latest version of CodeSys from the Codesys Online store (free of charge)
  • Install the CodeSys add-ons (above download button).
  • Ensure that the CodeSys feature is activated on the ACE1000. Run the diagnostic tools to see if the feature is active.
  • Run the CodeSys Control process on the ACE1000. The ACE1000 should be visible from the CodeSys environment.


CPU and Performance characteristics

Operating System

Linux

Indicators

LEDS 4*Main + 1*LAN + RS232 (tx, rx)

Processor

Sitara CPU (Cortext-A8)

Memory

FLASH 256 MB (32 MB for user), RAM 256 MB (16 MB for user)

Backup battery

Coin Rechargeable Batter (at least 20 days)


Communication Ports and Support

Modem support

Cellular modem, leased line modem, data radio, broadband radio

Multi-drop

MDLC over Serial

Program transfer capability

LTR Local (via direct connection) and FEP Remote

Date and time accuracy

NTP, GPS

Serial

Main board: RS232 (115.2kbps)/RS485 (460 kbps), Half/Full Duplex with/without CD; Plug-In (Optional): Isolated 2 x RS232 (115.2 kbps)

Ethernet ports

On board: 10/100 Mb/sec

Motorola radio support

APX, MOTOTRBO

Protocols

ModBus (Slave/Master over RS232/RS485 and Ethernet

Two-way radio

Digital MOTOTRBO, Digital Trunked Astro, Tetra

Firmware transfer capability

LTR Local (via direct connection) and FEP Remote


I/O Modules (OPTIONAL)

1XDO

ML form C ( SPDT) relays

8 Analog inputs

Ranges: 0-20mA, 4-20mA, 0-5V; Resolution: 16 Bit; Accuracy: 0.1% of full scale; User-configurable signal smoothing and 50/60 Hz filter

12 digital inputs

Wet inputs; Isolated (1500v relative to the CPU) ; De-bouncing filter: 10,20,30,40,50 mSec; Fast counter - 2KHz

4 analog output module

Ranges: 0-20mA , 4-20mA, 0-10V; Resolution: 12bit; Accuracy: 0.1% of full scale

4X EE form C (SPDT) relays

Yes

Digital Output performances

10 ms

8 and 16 analog input modules

8 x AI Isolated, 0-20mA, 420mA or 0-5VDC, resolution:16bit, Accuracy = .1% of full scale, user configurable smoothing, user configurable

3XDIs

Wet inputs; Isolated (1500v relative to the CPU); De-bouncing filter:10,20,30,40,50 mSec; Fast counter - 2KHz

8 and 16 digital output relay modules

8 x DO Relay 2.5a, 4 x ML Form C (SPDT), 4 x EE Form C (SPDT), DO Frequency: 10 Hz

4X ML Form C (SPDT) relays

Yes


ACE1000 Front Panel

ACE1000 Front Panel

physical characteristics

Physical dimensions (H x W x D)

6.3 in. (H) x 2.95 in. (W) X 4.4 in. (D) - Main Module

I O optional modules

I/O Bus, Digital Inputs, Analog Inputs

Weight

450 grams (ACE1000 Main Unit)
450 grams (extension DI)
450 grams (extension DO)

ACE1000 dimensions (Main Unit).

ACE1000 dimensions (Main Unit).


power supply options

AC

100-240 VAC, 47-63 Hz

Plug in power supply

5v, 7.5v, AUX 12v out

Power supply options

Disabled, Run Mode, Idle/Sleep Mode, Low-Power Sleep Mode (CPU is off)

DC

9-30 VDC


Regulatory Specifications

Emissions

CFR 47 FCC part 15, subpart B (class A) EN55022:2003 Class A, EN61000-3-2, EN61000-3-3

Cyber Security

MotorolaSCADA follows the NIST cybersecurity framework to improve resistance against cyber attacks against SCADA networks.



Safety standards

UL 60950-1, CSA 22.2-60950-1, IEC 60950-1/EN60950, AS/NZS 60950

Immunity

IEC 61000-4-2,
IEC 61000-4-3,
IEC 61000-4-4,
IEC 61000-4-5,
IEC 61000-4-6,
IEC 61000-4-8,
IEC 61000-4-11


user environment

Operating temperature

Negative 40 Degrees Celsius to positive 70 degrees Celsius (excluding radios)

Operating altitude

-400 meters to +4000 meters

Mechanical vibrations

EIA/TIA 603 Base station, Sinusoidal 0.07mm @ 10 to 30 Hz, 0.035 mm @ 30-60 Hz

Operating humidity

5% to 95% RH @ 50 degrees Celsius

Storage temperature

Negative 55 degrees Celsius to positive 85 degrees Celsius (excluding radios)


COmpatible radios types

The APX™ and MOTOTRBO™ radios are connected to the USB OTG port. The TETRA radio and the modems are connected to an RS232 port. For information on configuring CPU ports for various radios/modems, see the ACE1000 Easy Configurator User Guide.
All the radios listed below are external radios and should be operated according to their specifications. For complete radio specifications such as modulations, standards, Tx power output, Rx sensitivity, supply voltage, and power consumption, see the specific radio owner’s manual.
Note that the XPR 5350, APX 4000, and APX 6500 radios can work as conventional analog radios or as digital radios. ACE1000 supports digital mode only.

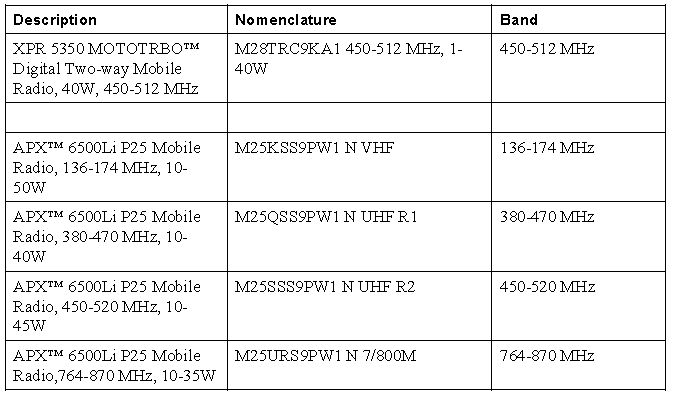

ACE1000 Radio Types 1
